2014+ Harley-Davidson CVO Stage-2 Kit (Gen-3)

UNRELENTING PERFORMANCE

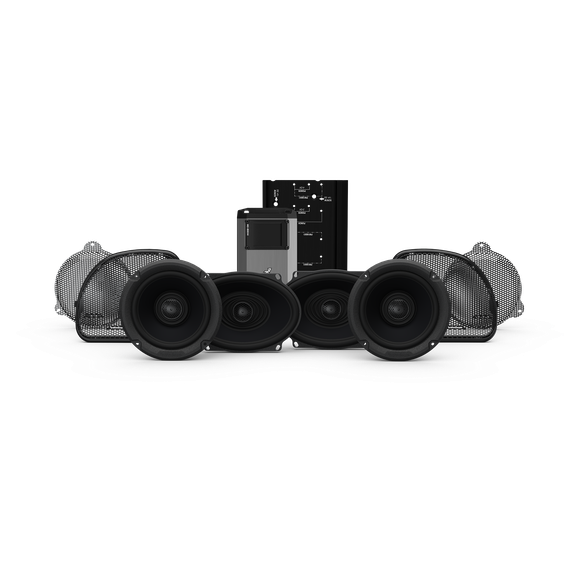

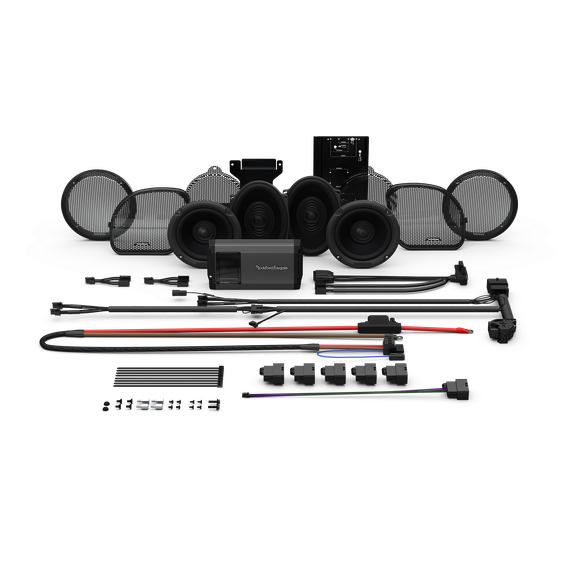

The HD14CVO-STG2 is a high-performance 2-speaker, 800-watt amplified audio system that includes the following:
 • (2) 6.5" fairing speakers
 • (2) 5x7" saddlebag speakers
 • (1) 800W 4-channel amp
 • (1) amp installation kit

Upgrade this kit on air-cooled lowers by adding:
 • (1) 6.5” lower speakers (see below)

You must flash your factory radio to use this kit. Ready to flash? Here’s a list of dealers that can flash your radio. Refer to our COMPATIBILITY chart to verify fitment before purchasing.

FEATURES AT A GLANCE

• Kits bolt to factory attachment points
• No drilling or cutting required
• Plug and Play design for easy installation
• Direct connect wiring harnesses for Harley-Davidson® models
• M5-800X4: 800-watt 4-channel IPX6 Element Ready™ amplifier
• 90-degree harness included with amp install kit for Road Glide® installations
• TMS57: Factory replacement 5"x7" 2-way speaker with integrated phase-aligned 25 mm tweeter
• Factory Harley-Davidson® Boom!™ Box 4.3, 6.5GT, and GTS must be flashed to use this kit
• RATS (Rockford Automated Testing System) proprietary quality & performance tested
• T-harness features loop-thru for Digital Signal Processor (DSR1 sold separately)
• T-harness supports front/rear fader (requires flash: "Rockford Fosgate 2014+ All Bikes")
• Y-adaptors supports expansion of speakers in lower fairing, saddlebag, or Tour-Pak®
• Klippel Verified certification program delivers the best possible loudspeakers
• TMS65: 6.5" 2-way Element Ready™ speaker with integrated phase-aligned 25 mm tweeter
• 2-Year Warranty
• Speakers custom tuned to hear music over wind, road & exhaust noise at highway speed
• RFK-HD14M5: Amp install kit for M5-800X4 on 2014+ Harley-Davidson® models
