Cicada

250W x 4 Amplifier

250W x 4 Amplifier

SKU: BDA1000.4D
Regular price $849.99
Regular price Sale price $849.99
Sale Sold out

4 CHANNEL POWER AMPLIFIER

Requires 4 AWG Power Wire  HDPG4K

  • 4 X 150 WRMS into 4 ohms @ 12.5 Vdc
  • 4 X 168 WRMS into 4 ohms @ 14.4 Vdc
  • 4 X 220 WRMS into 2 ohms @ 12.5 Vdc
  • 4 X 254 WRMS into 2 ohms @ 14.4 Vdc

BRIDGED MONO – 2 CHANNEL

  • 2 X 461 WRMS into 4 ohms @ 12.5 Vdc
  • 2 X 530 WRMS into 4 ohms @ 14.4 Vdc
  • Frequency response – 20-20,000 +/- 3dB THD < 0.5%
  • Operating Voltage: 8V – 16V
  • Current Draw (Music): 60 A
  • Current Draw (Max): 116 A
  • Recommended Fuse (Music): 120 A
  • Total Efficiency: 79%
  • Damping Factor: 200
  • SNR: 91dB
  • Crossover LPF/FULL/HPF: 30 TO 300Hz
  • Slope:12dB per octave
  • Gain: 0.2V – 12 Vac

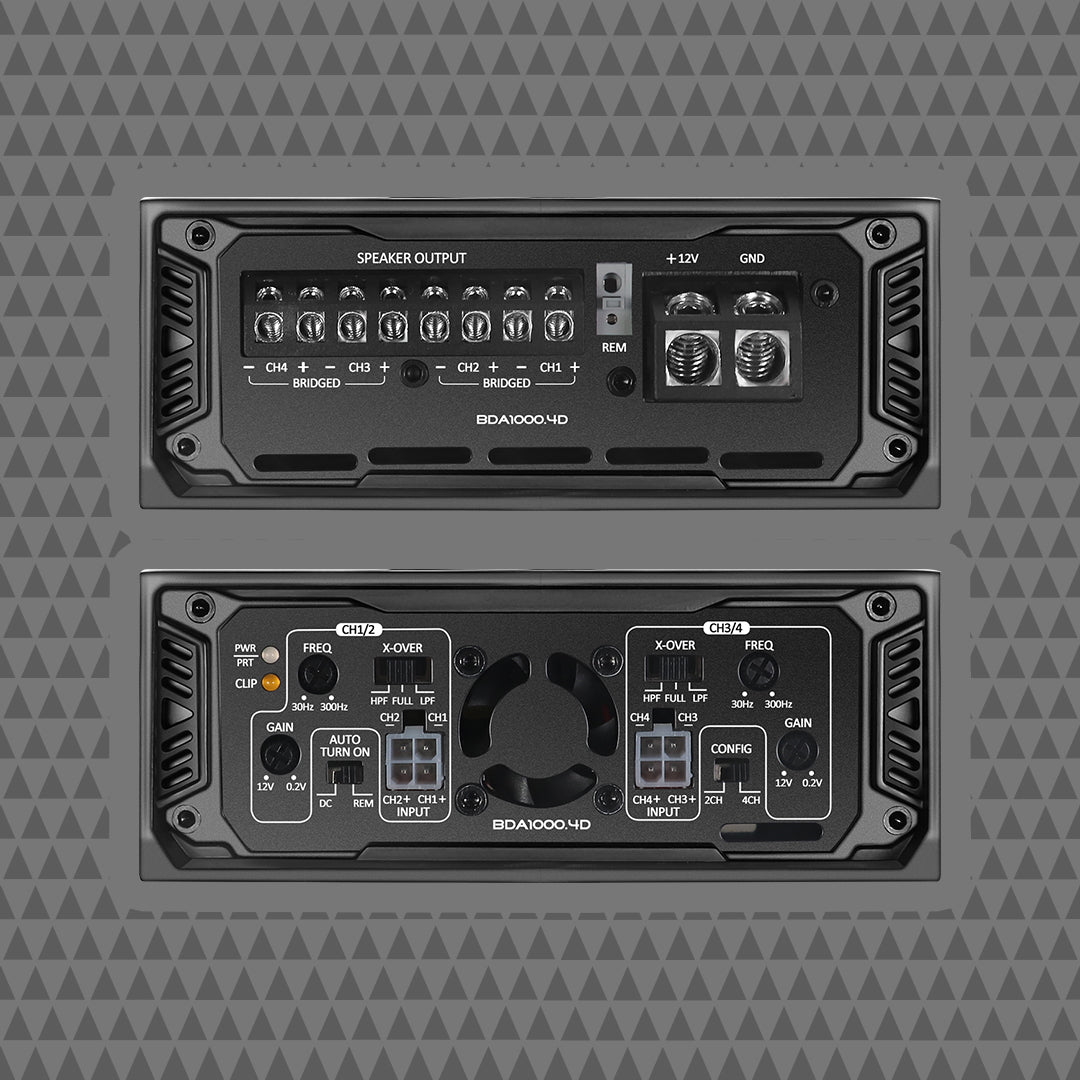

  • Turn-On Configuration: REM/DC
  • THD + N (10% Rated Power): 0.1%
  • Product Dimensions (Inches / Millimeters): 7.0 x 5.37 x 2.1 in / 178 x 136.4 x 54 mm
