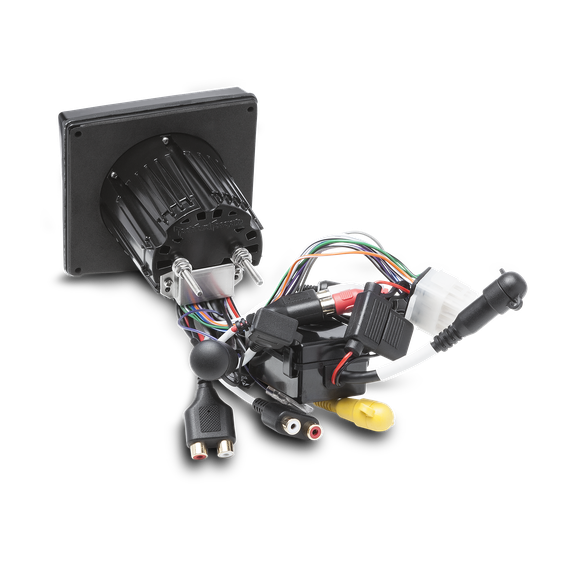

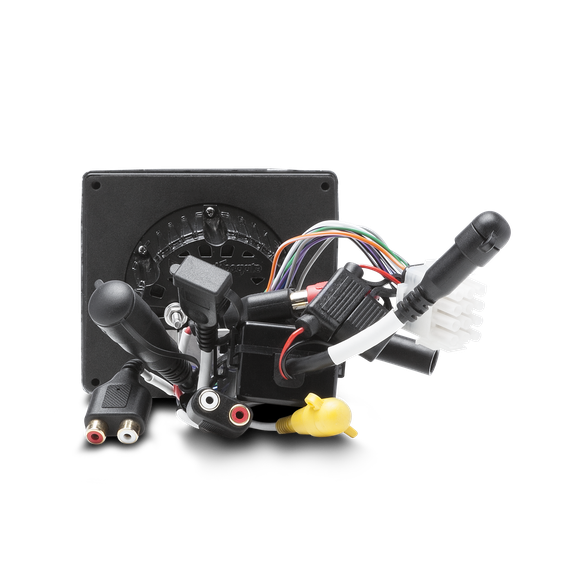

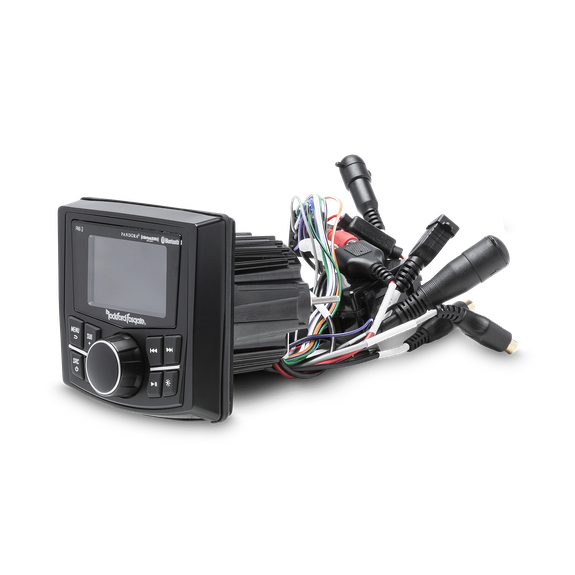

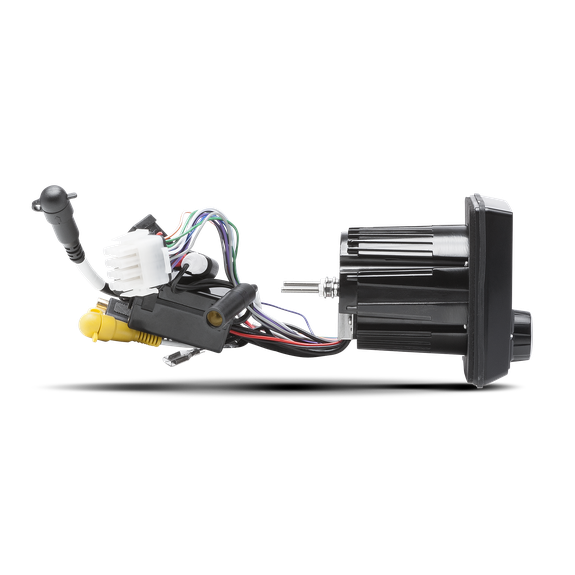

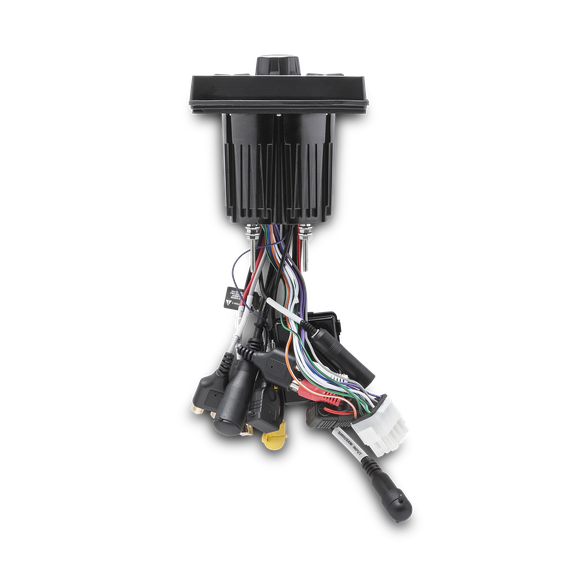

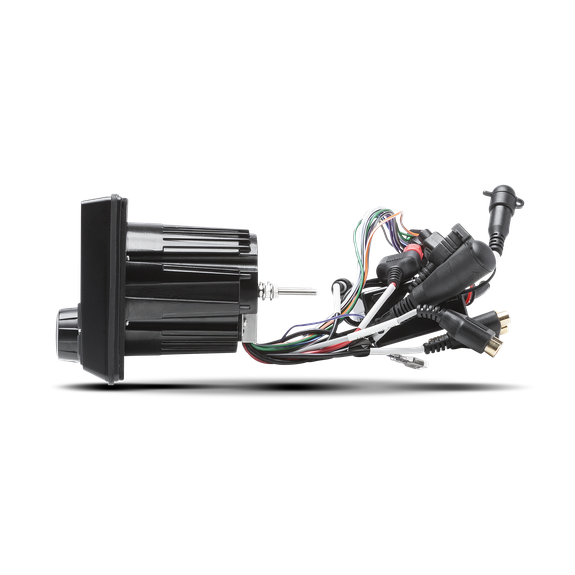

Compact Digital Media Receiver w/ 2.7" Display

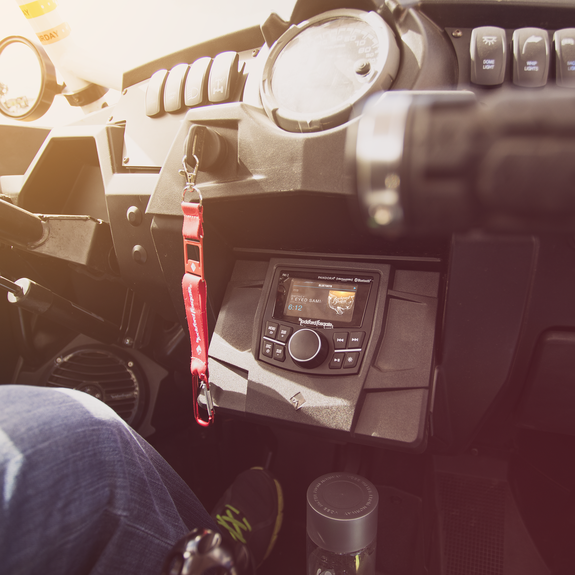

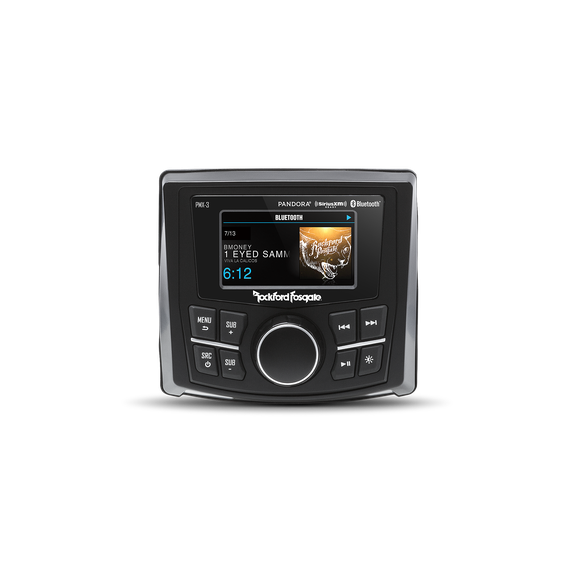

The PMX-3 compact digital media receiver, designed for marine and motorsports applications, features a 2.7"full color TFT display for optimum viewing even in full sun that is optically wet bonded to prevent any dust or moisture penetration.

The PMX-3 is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination and front mounted sub level controls. Additionally, with features such SiriusXM tuner compatibility, Pandora control capabilities and Bluetooth audio steaming with album art support1, this unit becomes a true command center of any system. Output flexibility comes with a 4x50 @ 2ohm internal amplifier or front and rear/sub output RCA's allowing the addition of aftermarket amplifiers for more power and output.   1Android devices equipped with limited functionality. Please refer to owners manual for details.

We've also upgraded the unit to feature a reverse camera composite video input with reverse trigger control and a day/ night display mode for better viewing in low light conditions. Finally, add in the EEprom memory system, custom GUI interface and wired remote expansion capabilities and you have the only media receiver you'll ever need.

FEATURES AT A GLANCE

• 2.7" Full color Thin Film Transistor display
• SiriusXM-Ready™ (SXV300 module) with color channel logos (18 channel presets)
• Wired remote ready (up to 3 remotes)

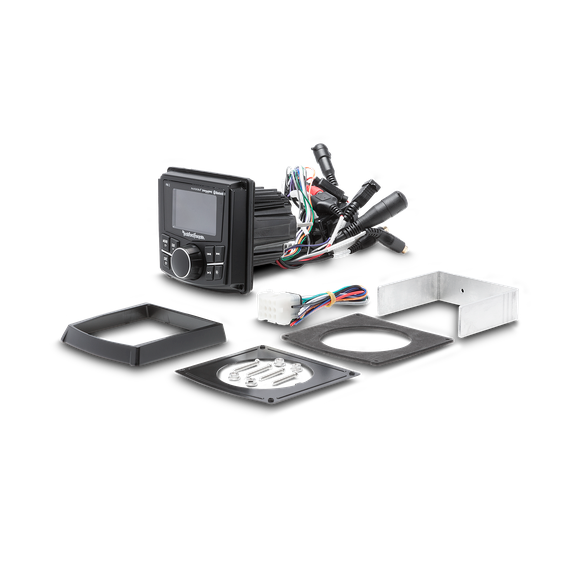

• Two-piece mounting system to secure panel to mounting surface
• Upgradeable Firmware and Bluetooth Software via USB
• IPX6 Marine Grade for prevention of water intrusion
• Integrated voltage gauge w/ low voltage alert
• ASTM: B117 Salt Fog & D4329 UV Exposure Tested
• Rear AUX-In (L/R)
• Electrically Erasable Programmable Read-Only Memory (EEPROM) is a type of non-volatile memory used in electronic devices to store data that must be saved when power is removed
• Bluetooth streaming audio (A2DP) protocol version 1.4 installed
• Internal power amplifier 4x45W 2Ω stable
• Front Panel Sub Control
• Automotive grade AM/FM Radio, Weatherband Radio digital tuner. Supports Radio Data System (RDS) to receive broadcast information
• Licensed Pandora control (Apple direct USB or BT/Android via Bluetooth)
• Rear USB With 1A Charging Only
• Simple Secure Pairing (SSP)
• Selectable crossover slopes of 12dB or 24 dB for each zone
• Single Zone output with 2 channels front full range and 2 channels rear/ subwoofer selectable rated at 2 volt
• Folder browsing via BT connected iPhones
• Made for iPhone apple certified
• Dedicated DSP per zone with 7-band graphic EQ + Punch EQ
• Selectable high pass and low pass crossover points for each zone
• Display album art from connected iPhones on the radio display
• Waterproof Rotary Encoder Volume Control
• White LED Button Illumination
• Adjustable input gain for each source
• Wired and front panel illumination control
• Tactile convex buttons for easy identification
• Wet Bonded Display
• Epoxy coated circuit board for water resistance
• Direct composite video input connection
• 2-Year Warranty
• External trigger input to activate reverse camera mode
• Day/Night display mode
